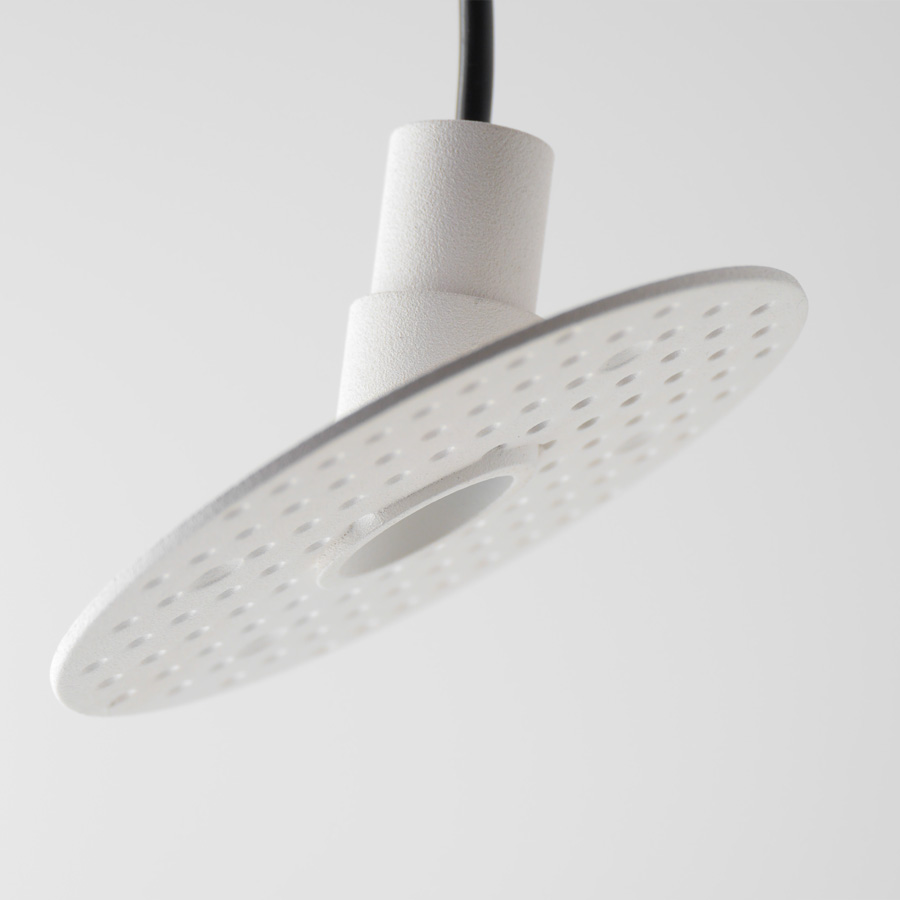

LL-PARI16/45

Product category: Trimless recessed downlight
Adjustability: Oriented at α = 35° (Fixed)
Power: 1 W
Light source: chip LED
CRI > 90
CCT: 2700K – 3000K – 4000K
Luminous flux 3000K: 28 lm
Optic: PMMA Diffuser
Beam angle: 48°
Driver: External, not included
Input: DC 2.8 – 3.2 V / 350 mA
Material: Die-casting aluminum
IP grade: IP44
Insulation class: III
Surface treatment: Electrostatic spray processing
Finish: White – Black
Cut out: Ø 45 mm
Total dimension: Ø 85 x H 37,5 mm

X POWER: 1

X1 FINISH: W / B

X2 CCT: SW / WW / NW

X3 BEAM ANGLE: 48°
